coreSPC

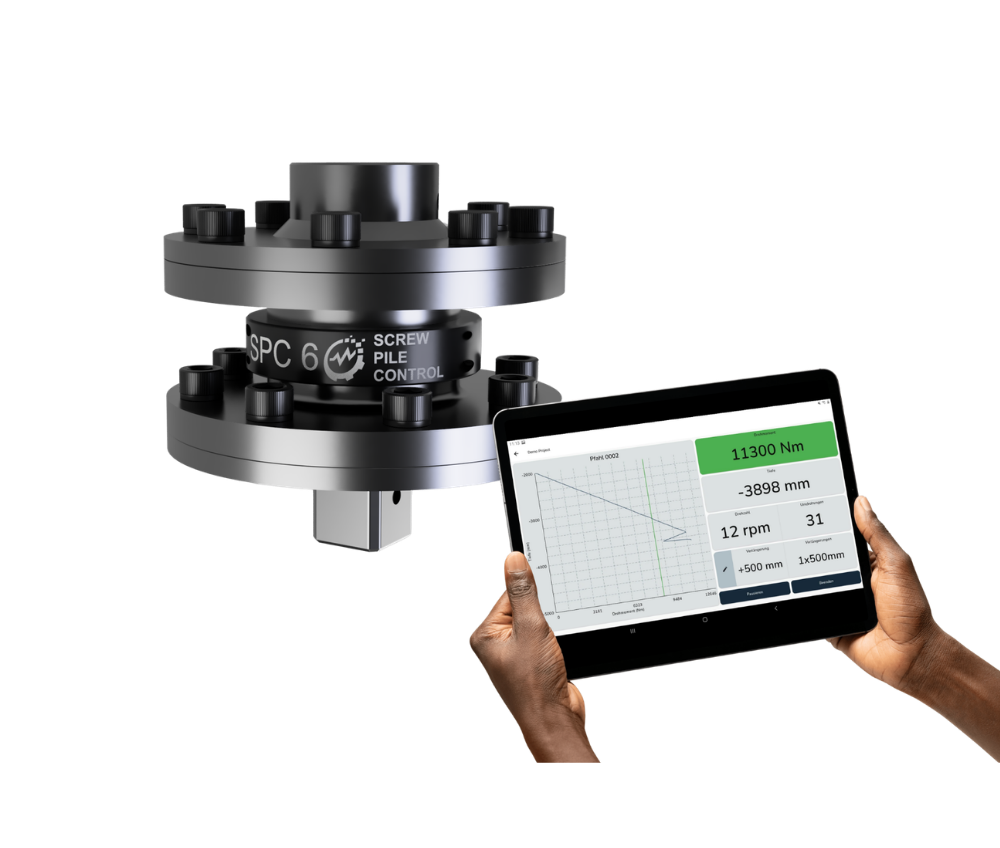

coreSPC – Monitoring and documentation of torques during screw-in processes for ground screws and helical piles
- Depth measurement available via an add-on sensor
- Live display and documentation of all measurement data
- Compact, lightweight, and durable
- 30-day trial period & rental option available
coreSPC
Precise sensor technology, intuitive live display, and automated documentation ensure that your pile foundation is transparent, safe, and demonstrably correct. The sensor system is immediately ready for use with its intuitive app for iOS and Android. Live feedback of torque, (measured!) depth, and speed provides greater safety and control during installation.
The app automatically generates reports for the entire installation project or individual piles. The sensor is compatible with various drives, such as hand-guided driving machines, hydraulic excavator attachments and self-propelled driving devices. The entire system is Made in Germany, and quick recalibration and provision of a loan unit is possible at any time.
coreSPC Variants
We offer sensors for different application scenarios: from hand-held screw-in machines to excavator attachments to dedicated screw-in vehicles. With the appropriate adapters, almost any combination is possible.

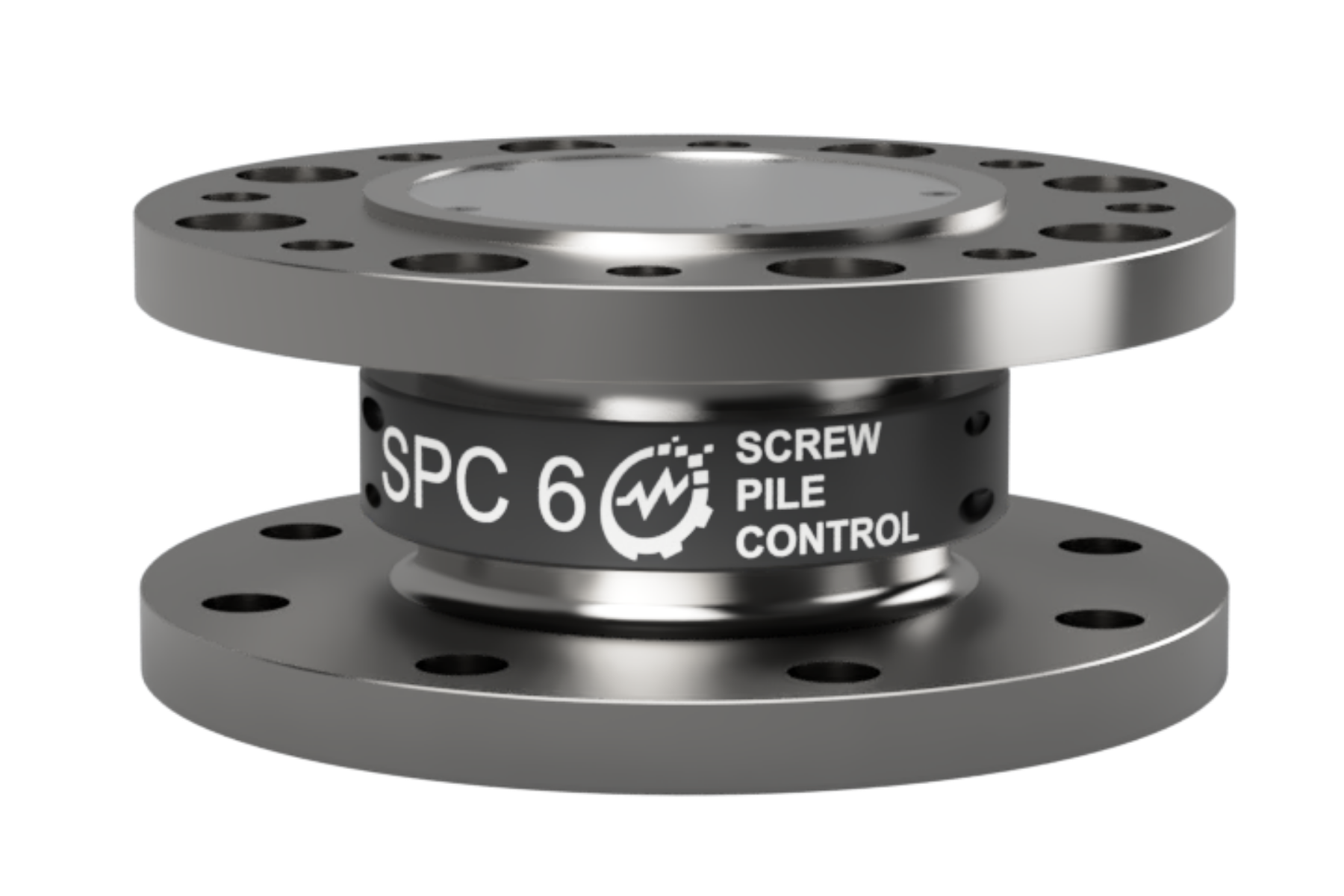

SPC-6
Design: Flange, LK 155.5 – 8 x M14
Area of application: Single-screw vehicle, hand-guided machine
Nominal range: 6,000 Nm
Weight: 5.6 kg
Available adapters:
- 1.5 inch square m/f
- others on request

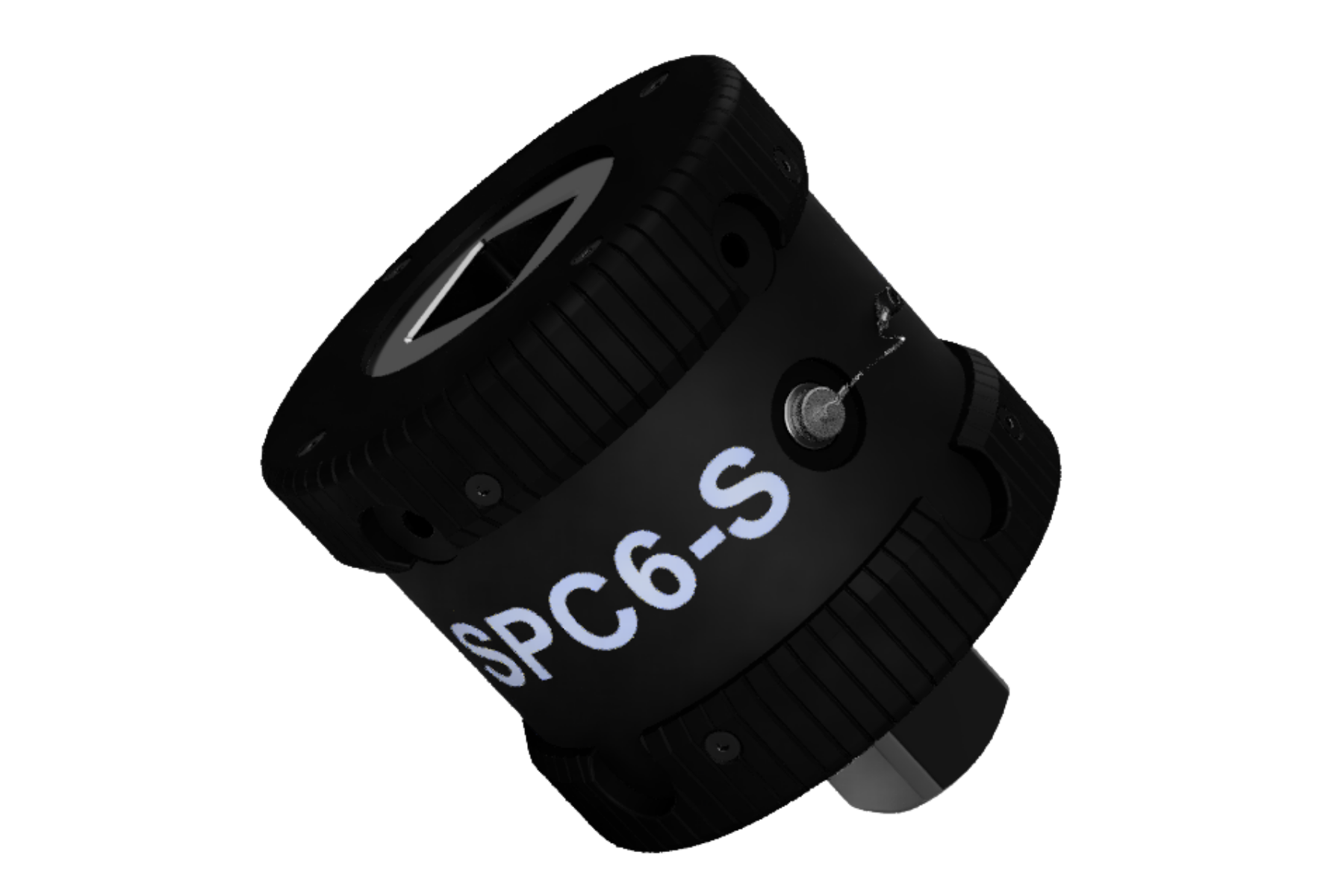

SPC-6s
Design: square 1.5 inch m/f
Area of application: hand-guided machines
Nominal range: 6,000 Nm
Weight: 7.2 kg
SPC-12
Design: Flange, LK 196 – 8 x M16
Area of application: Single-screw vehicle, hydraulic excavator attachments
Nominal range: 12,000 Nm
Weight: 8.1 kg
Available adapters:
- 75 mm square m/f
- 100 mm square m/f
- others on request

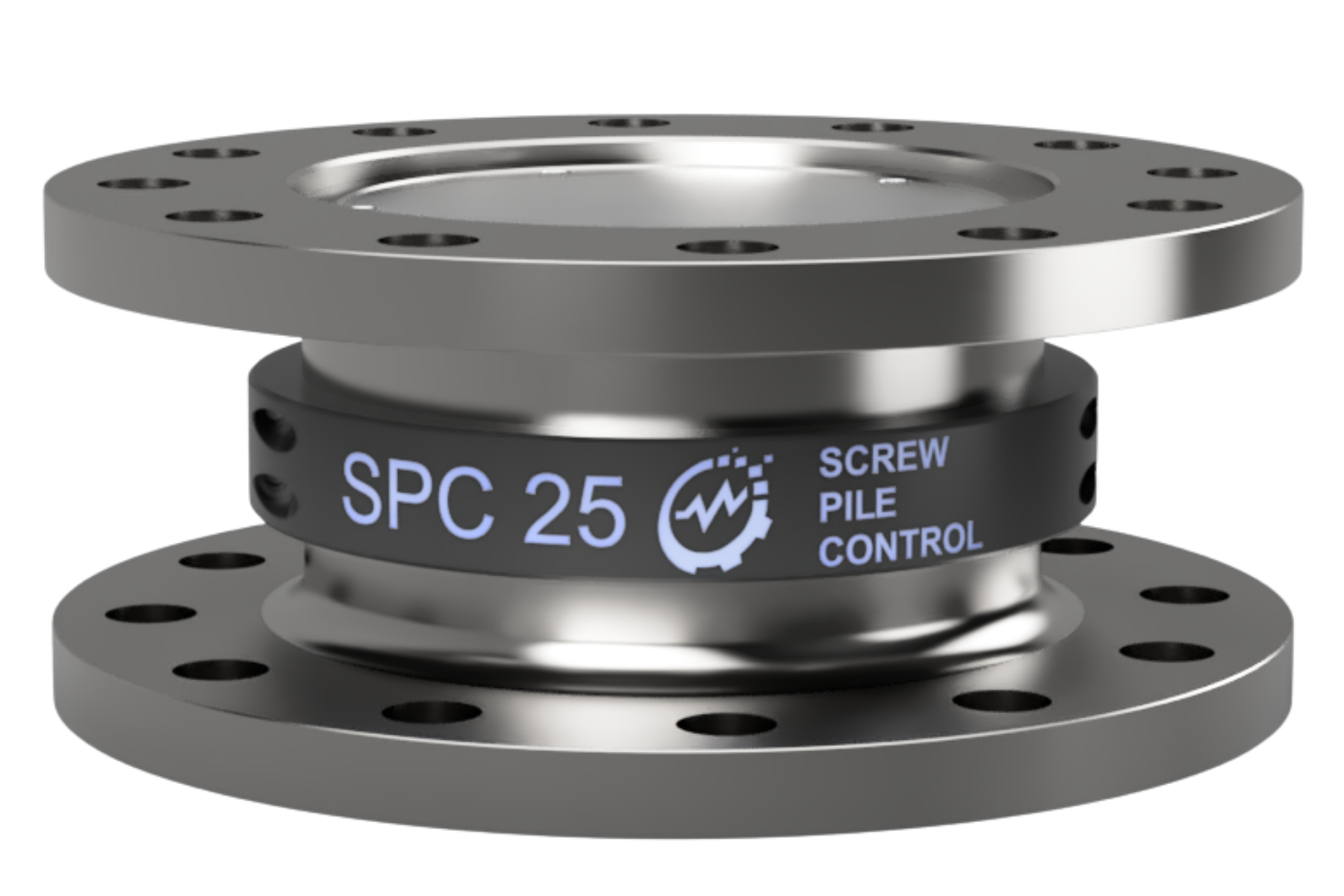

SPC-25
Design: Flange, LK 194.7 – 12 x M16
Area of application: Hydraulic excavator attachments
Nominal range: 25,000 Nm
Weight: 10.2 kg
Available adapters:
- 75 mm square m/f
- 100 mm square m/f
- others on request

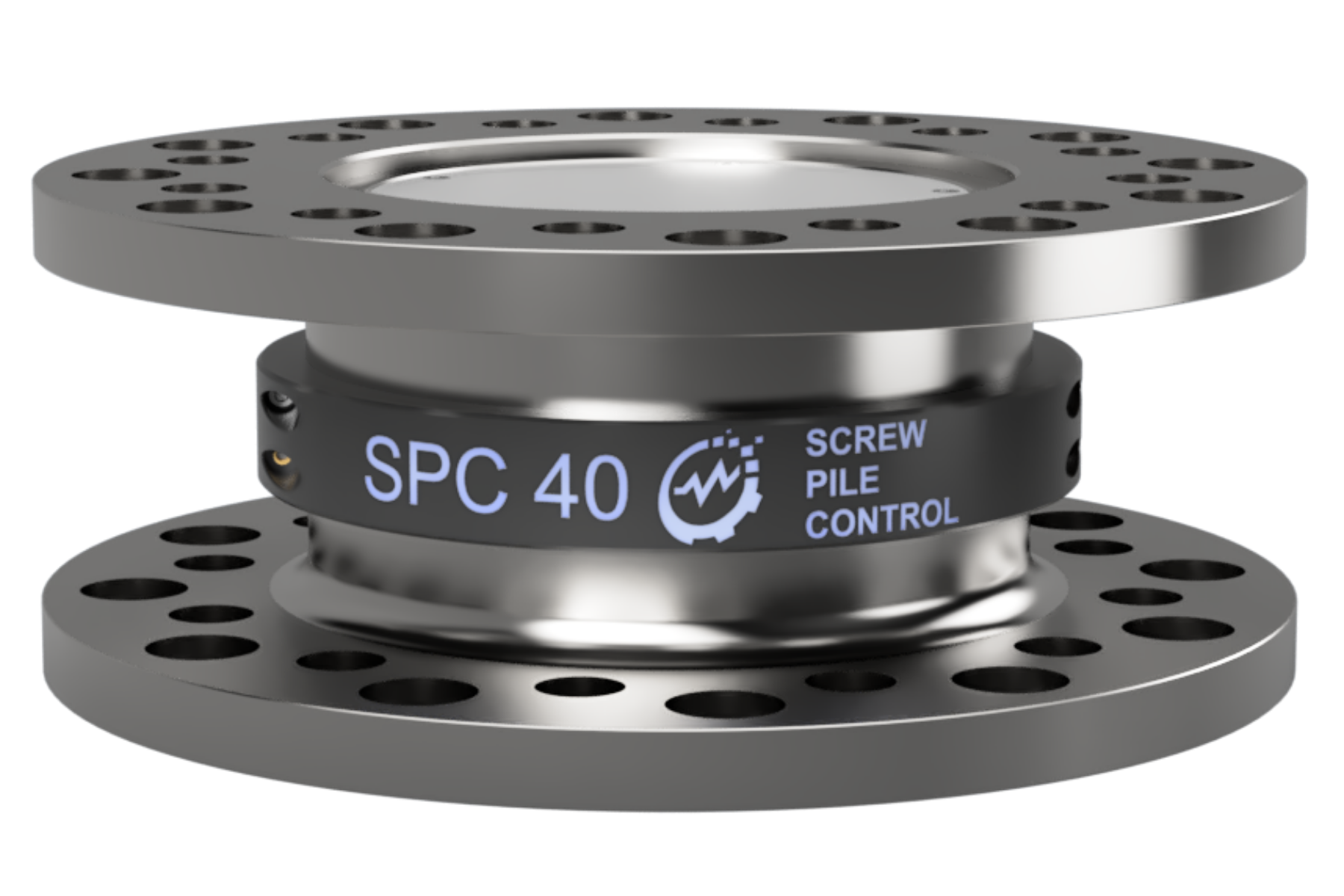

SPC-40
Design: Flange, LK 219 – 12 x M16
Area of application: Hydraulic excavator attachments
Nominal range: 40,000 Nm
Weight: 12.5 kg
Available adapters:
- 100 mm square m/f
- others on request
SPC - Screw Pile Control
The SPC app is compatible with mobile Android and iOS devices.
We recommend a tablet in landscape format for optimal display.

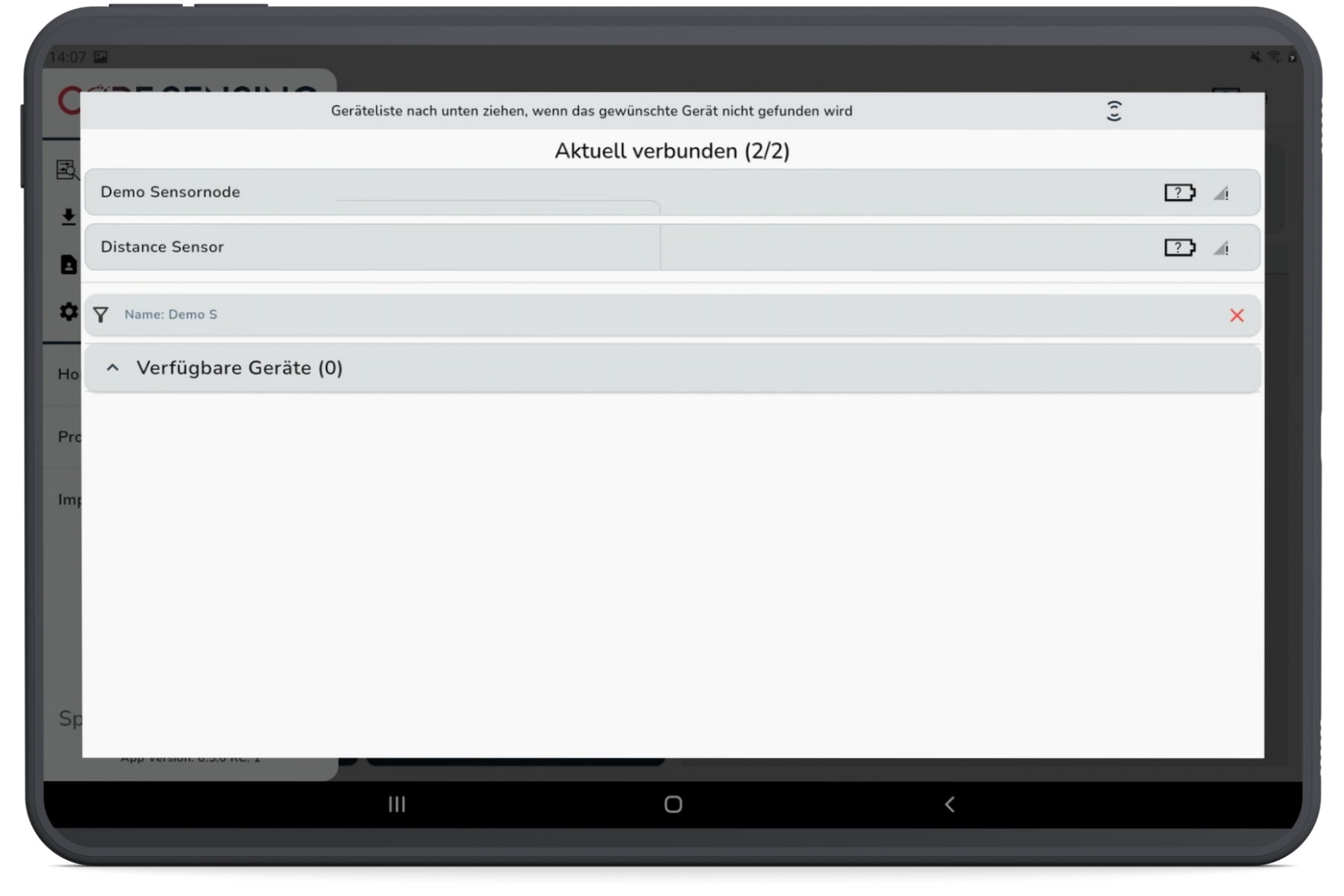

Connect Sensor
Easy connection of sensors via Bluetooth in the app. As simple as connecting Bluetooth headphones.

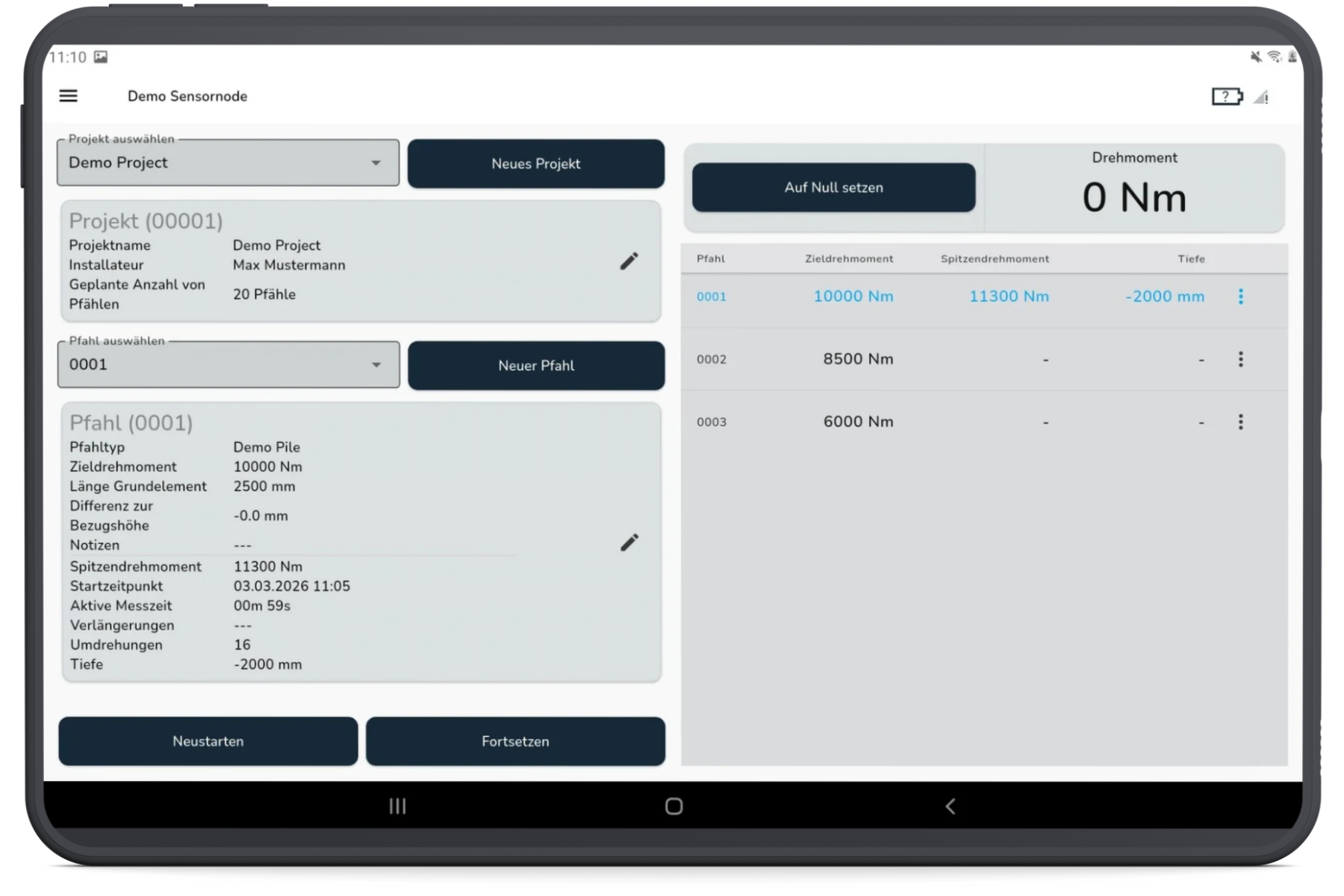

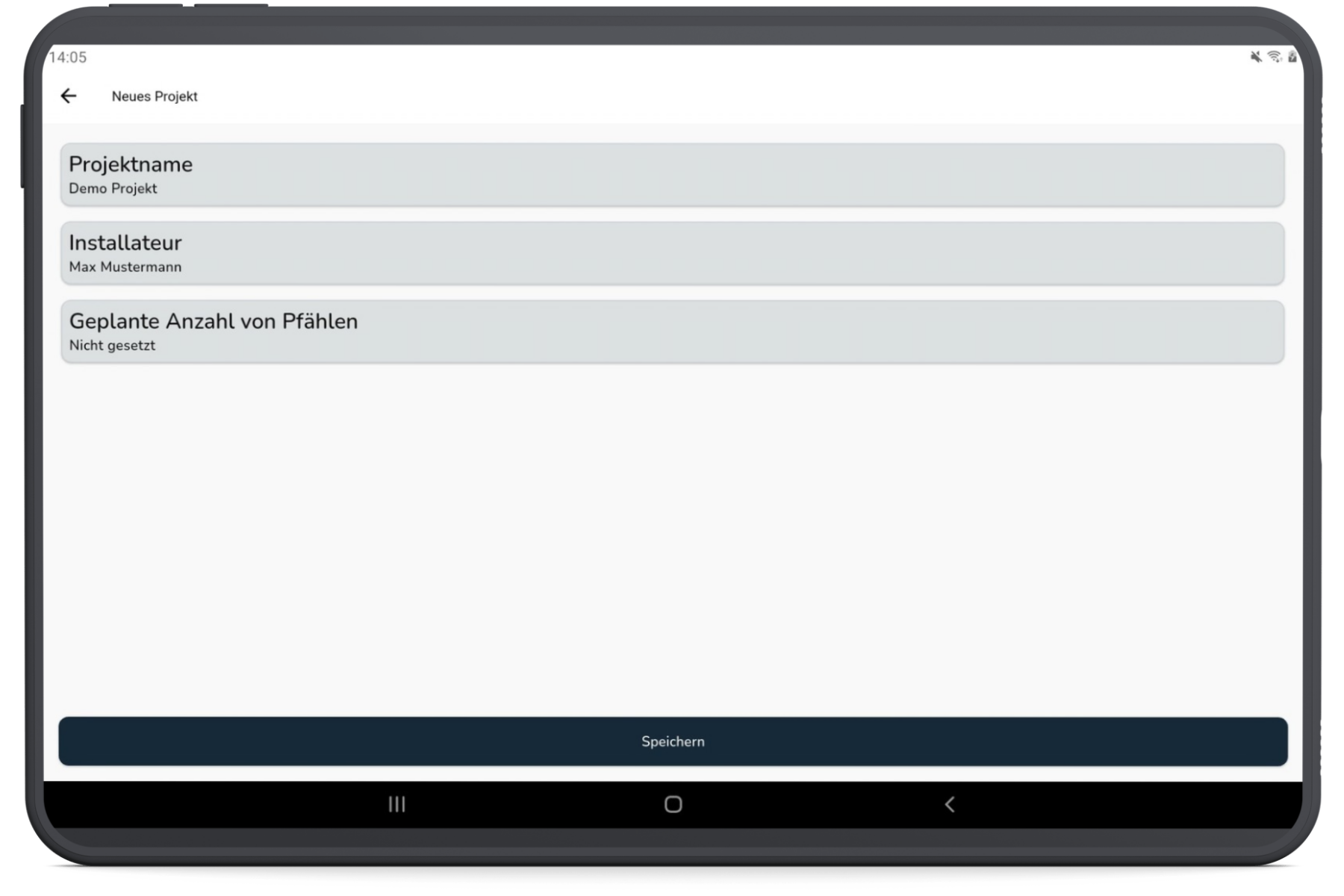

Create Project
Selection or creation of a new project. A project is, for example, a construction site with 40 screws. In the input form, a project name, the installer’s name, and the planned number of piles are entered.

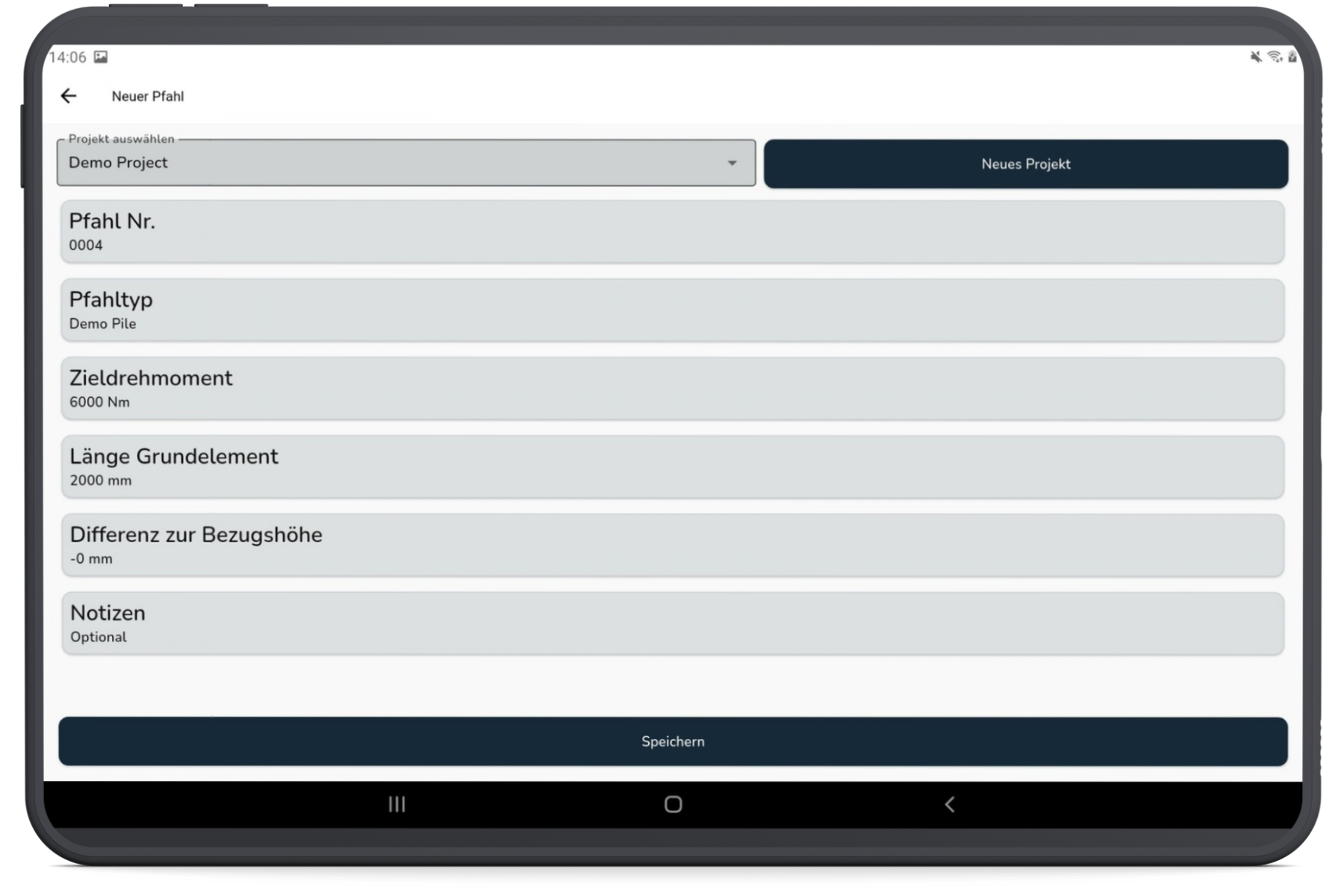

Create Piles
Within the project, piles receive a unique, sequential number upon creation. This is automatically suggested but can be overridden. The target torque and the basic length are recorded here in addition to a few other optional entries.
When creating a new pile, all settings from the previous pile are automatically adopted but can be overridden.

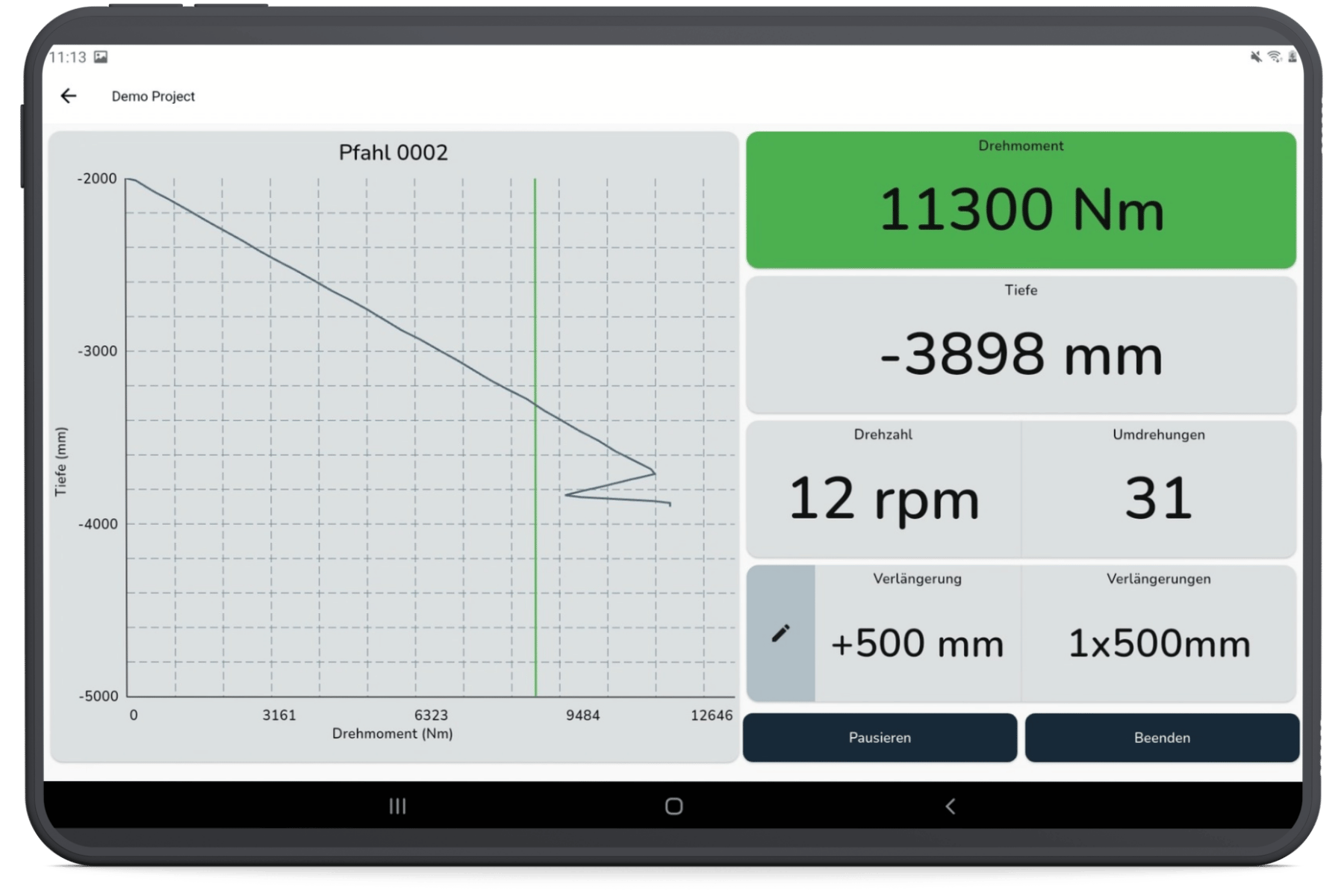

Live Display During Screw-In
Once the project and pile have been selected, the screwing-in process and thus also the data recording can be started at the touch of a button.
The current torque, speed and total revolutions are displayed in a clear dashboard. If a depth sensor is used, this value is also displayed.
As soon as the torque reaches the target value, the live display turns green.
Complete Pile
Once the pile has been properly screwed in, it can be locked. It can be restarted at any time, e.g. if several hydraulic drives are being used.
Plan Deviations
If necessary, extensions can be recorded and documented. In addition, individual piles can be deleted and recreated at any time.

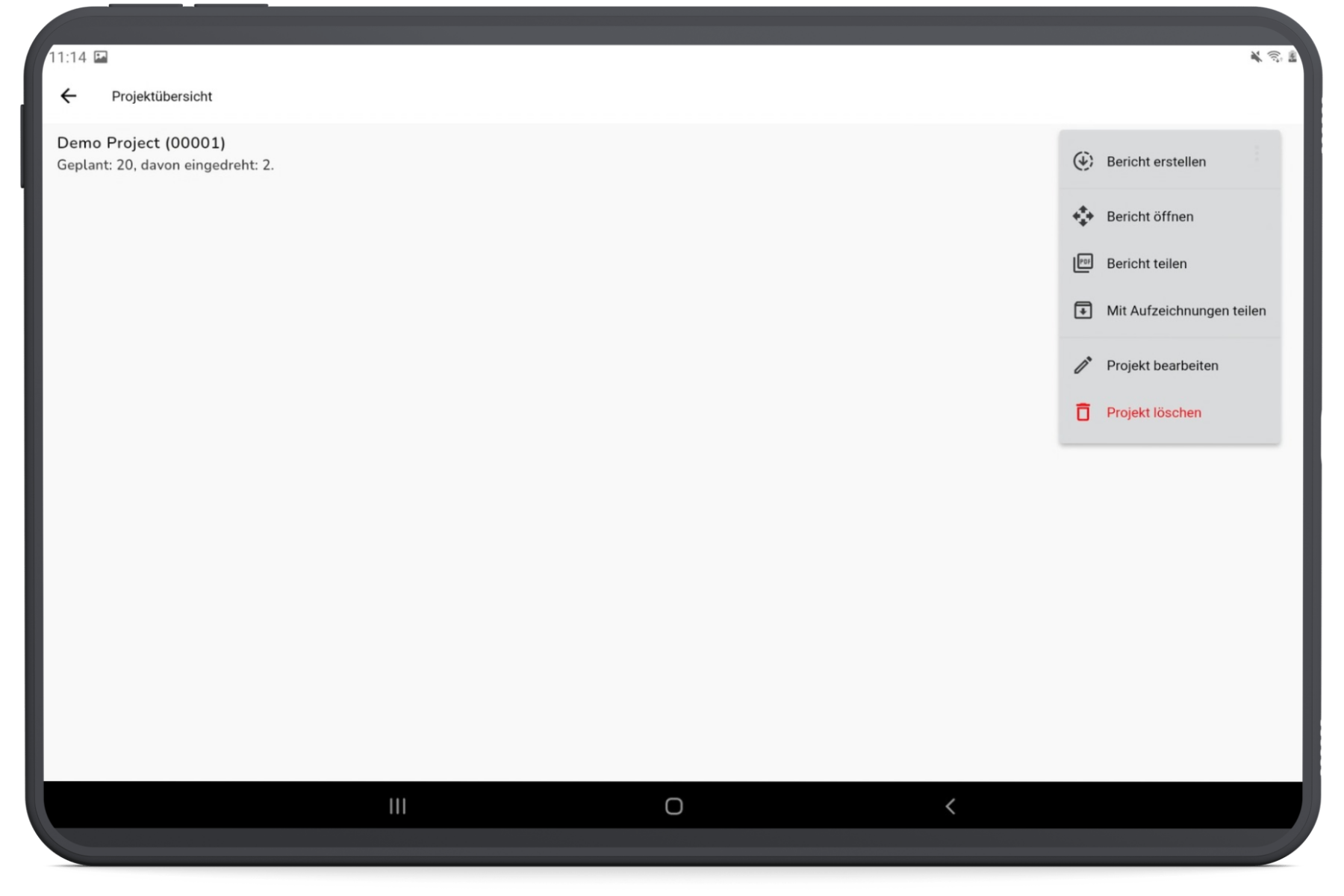

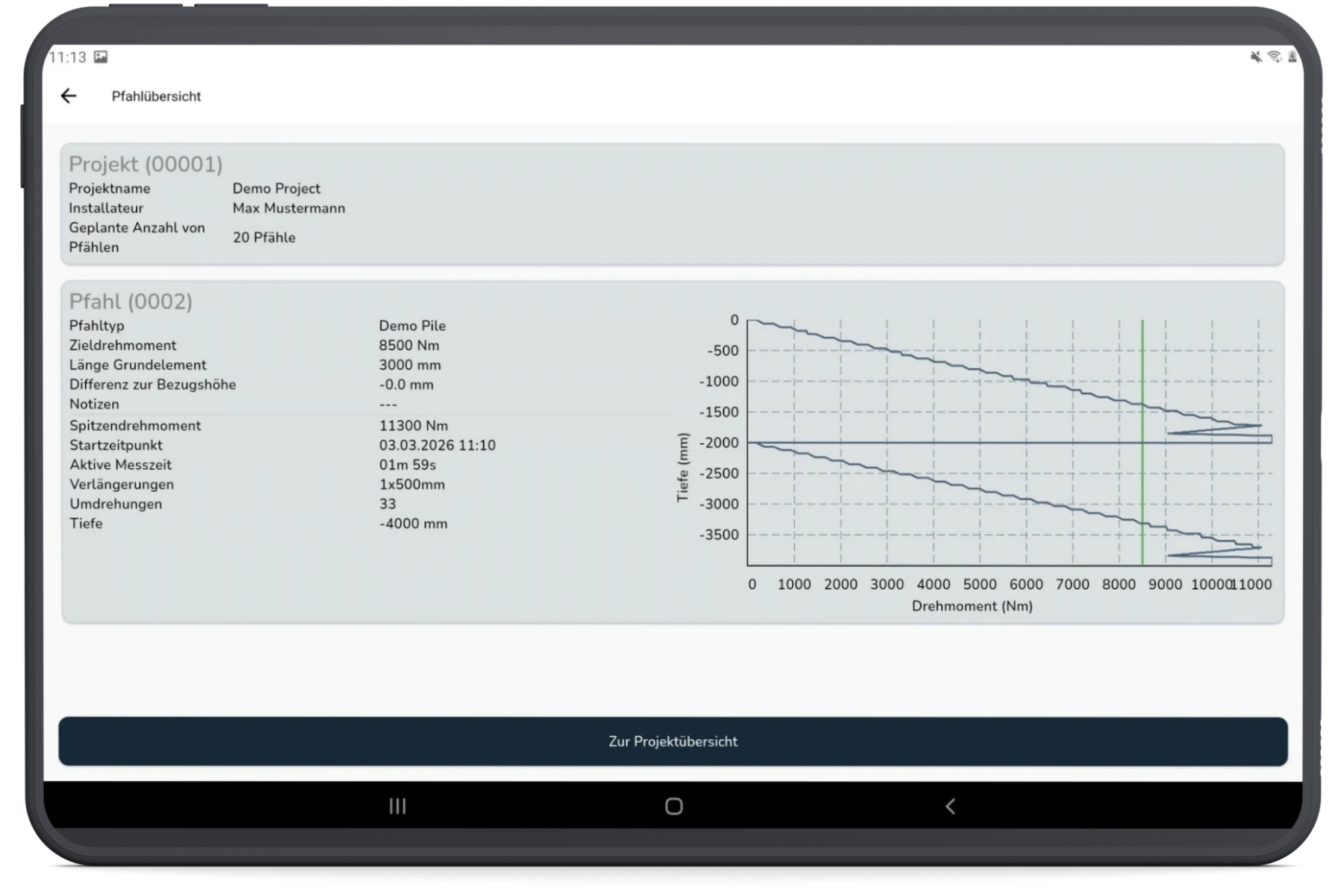

Project Overview
The project overview clearly displays all created, started, and completed piles.

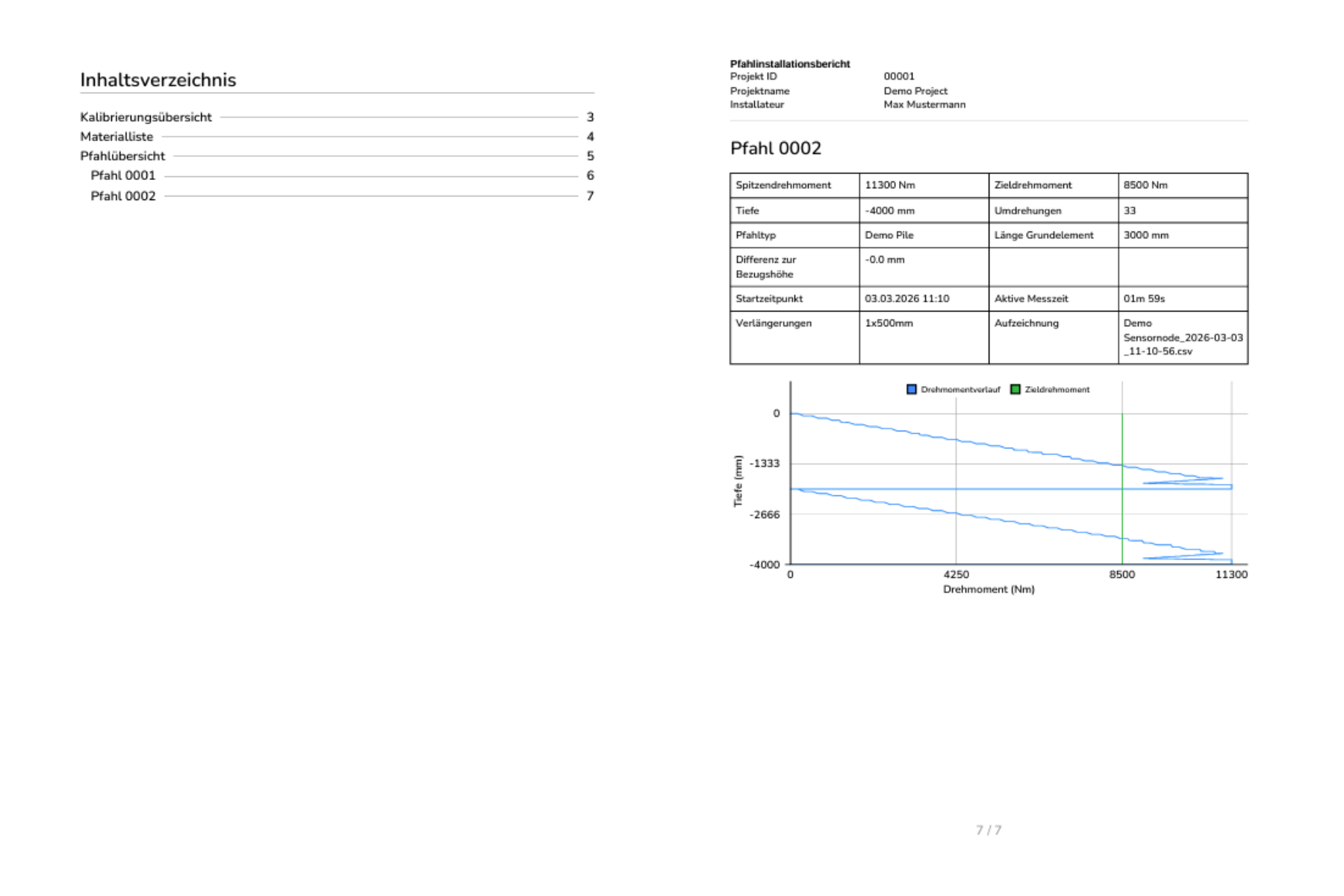

Documentation
At any time, a .pdf report can be generated and shared at the push of a button for the current status of a project. This consists of a pile overview and a detail page with a torque chart per pile.
If desired, the underlying .csv files can also be provided and reused.
Added value coreSPC
- Low weight, much lighter than alternative products
- Add-on depth sensor: Direct measurement of screw-in depth for synchronous display and documentation
- Battery life of several weeks in continuous use
- Robust and designed for construction sites
- Stable and energy-efficient wireless connection via Bluetooth
- Open interface on request with BLE, CAN, or other interfaces
- Automatically generated PDF report with logo and branding reduces workload
- Made in Germany, development, production, calibration
