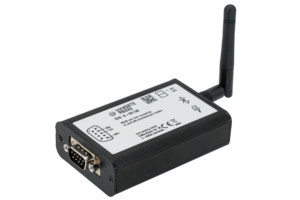

coreGATE Serial
Gateway for connecting up to 10 Bluetooth sensors based on coreLIME measuring amplifiers with serial interface
Available types RS232, RS422 & RS485
Additional USB interface available
- Live display and settings with the coreVIEWER app
Experience the future of industrial data acquisition with coreGATE, the innovative industrial IoT gateway for strain gauges and other sensor applications. coreGATE seamlessly connects up to 10 sensor nodes and collects data from up to 24 sensors to provide you with comprehensive data acquisition in real time – in the spirit of IIoT. Whether you need short-range connectivity with Bluetooth Low Energy or reliable long-range connectivity with optional LTE, the coreGATE IoT gateway offers the flexibility you need.
Industrial IoT Gateway coreGATE in brief
- Flexible connectivity: Bluetooth Low Energy and optional LTE connectivity for seamless data transfer
- Comprehensive output options: USB-C, 0-10V, LTE, RS232, CAN, and Ethernet for easy integration into existing systems
- USB-C interface for PC
- Precise data acquisition: Synchronized scanning with time stamp for reliable data integrity
- Customizable functionality: Easy adaptation to your specific requirements for optimized data acquisition and management
The right IoT / IIoT gateway for your application
Our IIoT gateway coreGATE is ideal for a wide range of industrial IoT applications such as test & measurement, predictive maintenance, industrial plant monitoring, telemetry and construction monitoring. Four different industrial gateway variants are available depending on requirements: The coreGATE CAN and RS232 industrial gateways transmit sensor data via a serial interface, while the coreGATE LTE-M IIoT gateway sends the measurement data to the coreCLOUD IoT platform via the LTE-M mobile network. For the wired transmission of sensor data as an analog signal, coreGATE 0…10V offers a suitable solution.
coreGATE CAN
- Serial interface: Sensor data is transmitted via a standard serial interface with the corresponding protocols.
- Ideal for: Applications in industry, building automation, and agriculture where a serial infrastructure is already in place
coreGATE RS232
- Serial interface: Sensor data is transmitted via a standard serial RS232 interface with the corresponding protocols.
- Ideal for: Applications requiring a point-to-point connection and where an RS232 infrastructure is already in place, e.g., for connecting older devices or systems with limited data rates
coreGATE LTE-M
- Mobile network: Measurement data is transmitted via the modern LTE-M mobile network.
- Ideal for: Applications where wireless data transmission is required, e.g., in remote locations or for mobile applications
coreGATE 0-10V
- Analog signal: Sensor data is transmitted as an analog signal.
- Ideal for: Applications where sensors with analog output are already present
coreGATE Ethernet
- Ethernet interface: Sensor data is transmitted via a standard Ethernet connection with high speed and reliability.
- Ideal for: Applications in industrial networks that require powerful and stable data transmission, e.g., for integration into process control systems or cloud platforms
Information and options for the measuring chain
The modular construction kit from core sensing enables a wide range of options for mapping the measurement chain according to the respective application. The focus is always on energy-efficient, wireless transmission of the measurement data.
Sensors
Generation of measured values with different sensor principles
Data acquisition
Amplification, digitization and fusion of measured values
Data provision
Provision of measurement data for final use
- coreLIME – wireless measuring amplifier
- Acceleration
- Gyroscope
- Speed
- Temperature
- Air humidity
- coreIN – Wireless sensors
- Wheatstone Bridge
- coreLIME
- Compatibility with a wide range of sensors and sensor principles
- coreLIME & coreMOBILE
- Configuration of the sampling rate & provision intervals
- Logging and events (threshold values)
- Data pre-processing with DSP Toolbox
- Compatibility:
- Wheatstone bridges (strain gauges), full bridges, half bridges, quarter bridges
- Pressure sensors
- Sensors with analog signal output (0…10V, 4…20mA)
- Sensors with I2C & SPI
- We would be happy to advise you on other sensors and interfaces
- coreVIEWER – free mobile app
- Live view
- Export CSV Log
- Analysis CSV Log, Toolbox
- coreGATE – Gateways
- USB
- 0…10V
- CAN bus
- RS232/422/485
- TCP/IP
- MQTT
- coreCLOUD – Analytics & API
- Dashboard
- REST API
